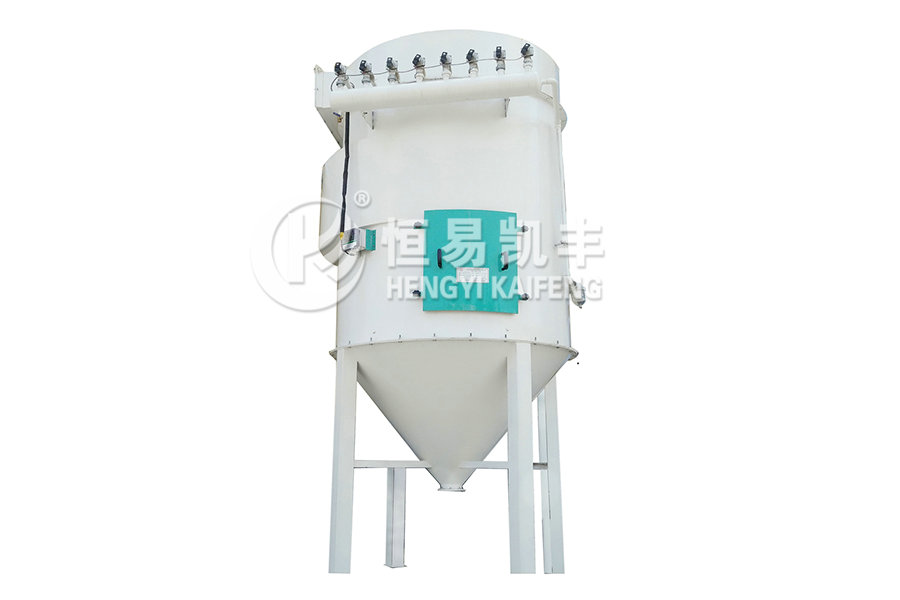

Pulse dust collector
TBLM cylindrical high pressure pulse dust collector is composed of upper box, middle box and lower box. The external electromagnetic pulse valve is used for back blowing ash, centrifugal tangential air inlet and flat bottom rotary scraper ash discharging mechanism. Compact structure, low resistance of equipment, low load of filter bag, large air volume and good ash cleaning effect. Widely used in grain and oil processing, feed processing, building materials, chemical industry, mechanical casting, mining and other industries. It is an ideal equipment for industrial dust cleaning and recovery in industrial and mining enterprises.
| 參數 parameter 型號 Model | 濾袋數量 Numbers of sifter-bags | 濾袋長度 Numbers of sifter-bags | 過濾面積（m2） Sifting area | 處理風量（m3/m） Wind processing | 刮板功率（Kw） Board Power | 關風器功率（Kw） Air sealer power |
| TBLM52 | 52 | 2000 | 38.2 | 2292-11460 | 1.1 | 0.75 |
| 2400 | 46.1 | 2766-13830 | ||||
| TBLM78 | 78 | 2000 | 57.3 | 3438-17190 | 1.1 | 0.75 |
| 2400 | 69.1 | 4146-20730 | ||||
| TBLM104 | 104 | 2000 | 76.5 | 4590-22950 | 1.5 | 1.1 |
| 2400 | 92.1 | 5526-27630 | ||||
| TBLM120 | 120 | 2000 | 94.2 | 8640-31560 | 2.2 | 1.5 |
| 2400 | 113.04 | 10800-35680 |
